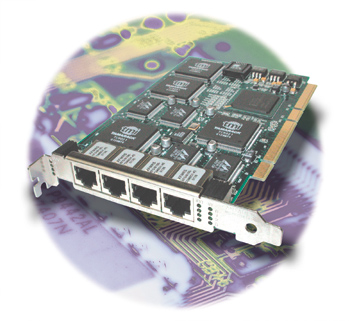

PCI P-0085

PCI Quad Port Gigabit Ethernet

・ Four Independently Routed Gigabit Ethernet Channels
・ IEEE 802.3z, 802.3x, 802.1p, 802.1q Compliant
・ VLAN Tag Filtering, Insertion and Removal
・ IP/TCP/UDP Hardware Checksum Calculation and Verificatio　
・ WAKE on LAN Support
・ Jumbo Frame Support, Transmit and Receive
・ Bootability Support for Sunｮ SPARC
・ Backwards-Compatible with 100/10Base-T

Antares Part Number:
 P-0085
Operating Systems Supported:
 Solaris 8 and Above
Solaris 2.7 and Later:
Linux Kernel 2.2 and Higher:
Windows NT 4.0:
Windows 2000:
Windows 9x
Systems Supported:
 SunFire Line
UlTRa 5
UlTRa 10
UlTRa 30
UlTRa 60
UlTRa 80
Enterprise 220R
Enterprise 250
Enterprise 420R
Enterprise 450
SunBlade 1000
SunBlade 100
Enterprise/HPC 3000-10000 w/PCI I/O
NeTRa t1 100
NeTRa t1 105
NeTRa T1 AC200
NeTRa t 1120
NeTRa t 1125
NeTRa T 1400
NeTRa T 1405
UlTRa AX
UlTRa AXdp
UlTRa AXe
UlTRa AXi
UlTRa AXmp
(requires PROM 3.10.9+)
x86 Systems, Pentium III and Higher
Software Drivers
 age, antrtrunk
Max Ethernet Rate
 1000 Mbits/sec. per direction
Number of Ethernet channels
 4
Ethernet type
 1000Base-T/100/10Base-T
Ethernet Connectors
 1000Base-T:Shielded RJ45
Auto-Negotiation
 Yes
Full Duplex
 Yes
Speed Auto-Sensing
 Yes, 1000,100 or 10Mbits/Sec
Local MAC Address
 Yes
Multiple Boards per System
 Yes
Ethernet Specification
 ANSI/IEEE 802.3z, 802.3x, 802.1p. 802.1q
LEDs
 1000/100/10 Mbits/Sec,
Full-duplex Link
PCI Slots Required
 1 Universal Short Card
PCI Data Bus Width
 32/64 bits
PCI Clock Frequency
 66 MHz, Compatible with 33 MHz. slots
PCI I/O Voltage Required
 5V or 3.3V
PCI Data Transfer Method
 64-Byte Burst DMA
Dimensions
 6.875" (174.6 mm) L x 4.125" (106.7 mm) H
Temperature Range
 Operating: -5C to +70C
Nonoperating: -40C to +75C
Humidity Range
 Operating: 5% - 85%
noncondensing @ 40C
Nonoperating: 95% noncondensing @ 40C
Altitude Range
 Operating: 0 to 3000 m
(0 to 10000 ft)
Nonoperating: 0 to 15000 m
(0 to 50000 ft)
