CPU

Support Socket 478 processors with 400/533MHz FSB(INTEL Pentium 4/Celeron 4,Max 3.0Ghz)

Chipset

Intel 845GV North Bridge

Intel FW828010B South Bridge

Memory

The motherboard accommodates 2.5V DDR configuratios

2 x unbuffered 184-pin slot with DDR 266/333 DIMM up to 2GB memory size

VGA

Integrated Intel IGX celerator

Memory Size: Max.up to 64MB frame buffer sharing system memory

Output Interface: VGA port

Expansion Interface

2 X PCI expansion slot

3 X ISA expansion slot

IDE

2 X UltraDMA 133/100/66 Connetors

Ethernet

1 x 10/100Mbps fastEthernet Realtek RLT8100C

Sound

Realtek alc655

Compliant with AC'97 2.3 specification

18-bit stereo full-duplex CODEC with independent and variable sampling rate

3.3V digital, 5V analog power supply

IO

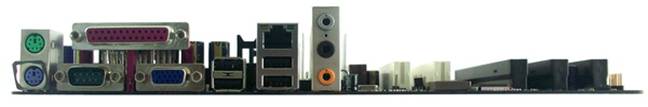

The motherboard has a full set of I/O ports and connectors:

2 X PS/2 ports for mouse and keyboard

1 X serial port

1 X VGA port

1 X parallel port

1 X LAN port

6 X USB 2.0 port(2 x USB header)

3 X Audio jacks for microphone,line-in and line-out

ATX power connector+ 12V(4PIN)

BIOS

Award BIOS

4/8Mbit flash memory

SYSTEM control

CPU voltage monitoring

Wake-on-LAN, Keyboard Power-on, Timer Power-on

System power management

AC power failure recovery

Operating Temperature

0~50度

Operating Humidity

0% - 93% (relative humidity; non-condensing)

Size

Macro-ATX

180 mm(W) x 293 mm(L)
